Computer Input Methods

This guide explains how to connect devices in Mackey Hall and switch video sources from the wall touchscreen.

Connecting Devices

  1. Locate the input ports on the wall outside the Scout Closet, under the projector screen, and by the sound system/chair closet wall.
  2. Connect your device to the matching labeled port.
  3. On the touchscreen, select the input that matches the port label you used.

Switching Inputs on the Touchscreen

  1. Go to the wall touchscreen in Mackey Hall.
  2. If you are not on the Homepage or the Video page, press the Home icon in the top-left corner.
  3. If you are on the Homepage, press Video to open input controls. If you are already on the Video page, continue to the next step. Control Screen Homepage Press Video on the homepage to open input controls.
  4. On the first Video page, press the input button that matches your connected port.

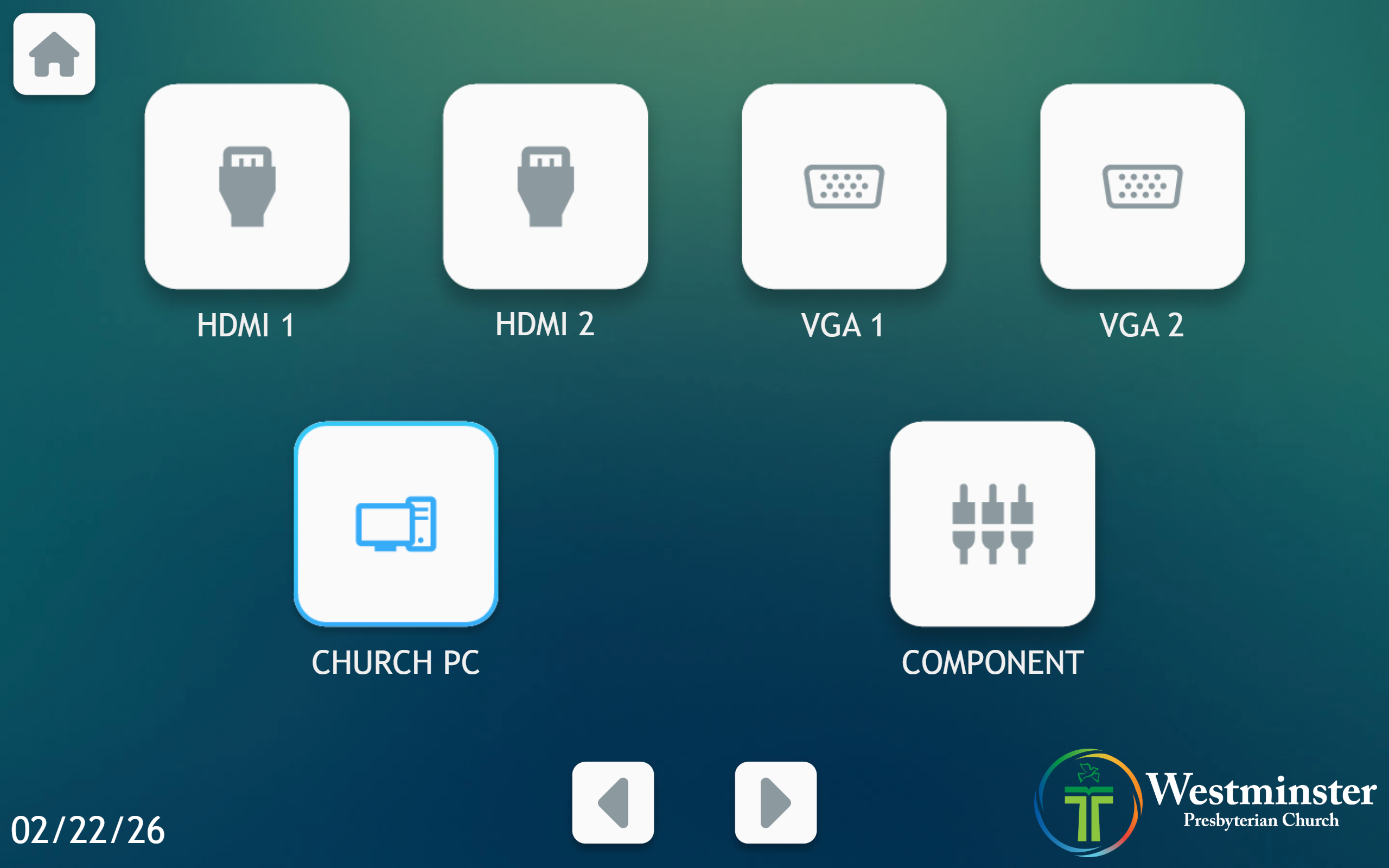

  5. The selected source will light up blue when it is active. Video Controls Page 1 Select the input that matches your connected port label.
  6. Use the left/right arrows at the bottom to move between Video pages.

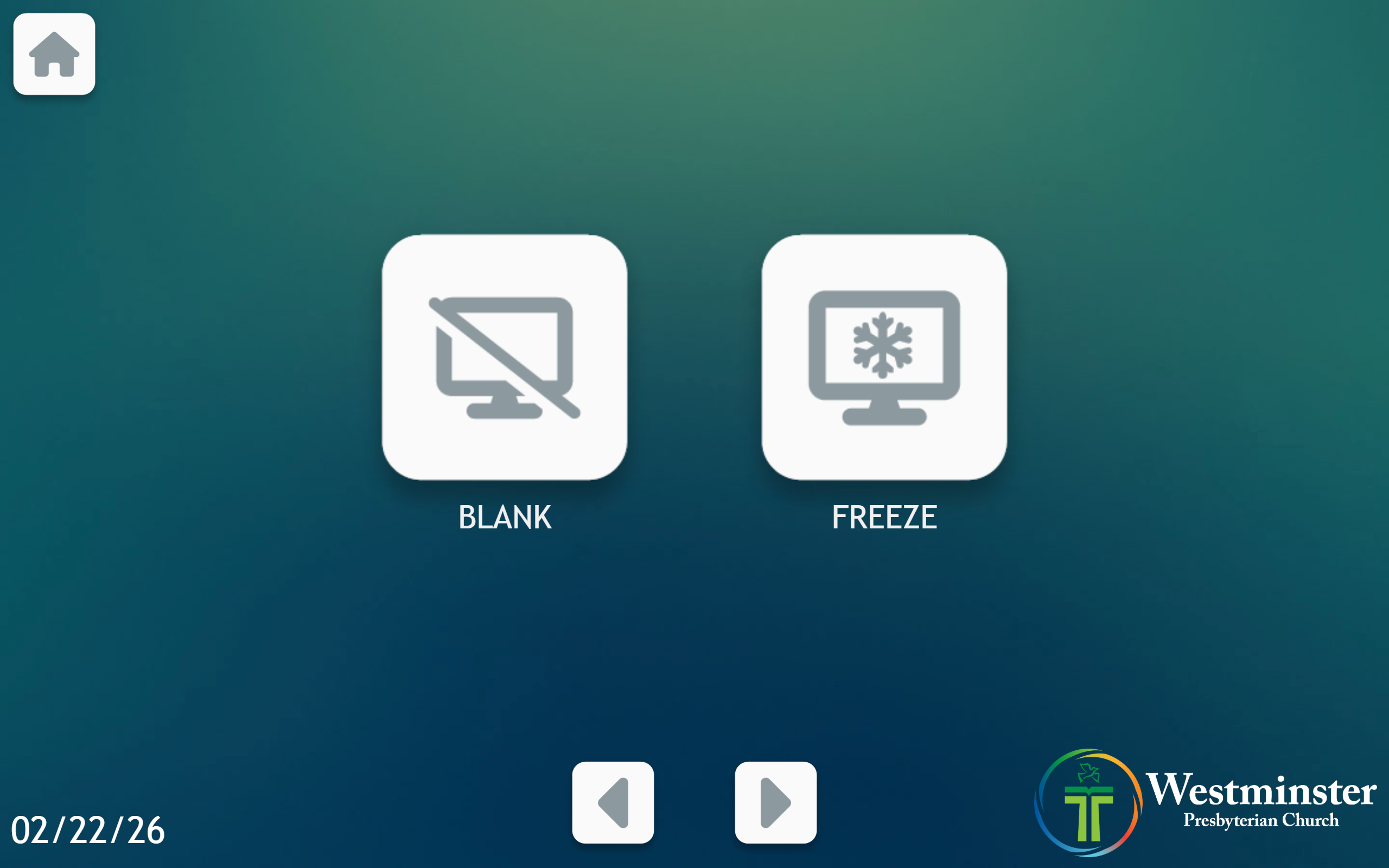

  7. On the second Video page, use Freeze to pause the current image or Blank to black out the screens. Video Controls Page 2 Use the bottom arrows to switch pages. Freeze and Blank are on the second Video page.

Input Methods

HDMI Inputs

Mackey Hall has three HDMI inputs: - Church PC HDMI: Located with the VGA and RCA ports under the input selector panel. Reserved for the Church PC. - HDMI 1: Located near the control touchscreen for personal devices. - HDMI 2: Located on the wall outside the Scout Closet, under the projector screen, for personal devices.

HDMI carries both video and audio over one cable.

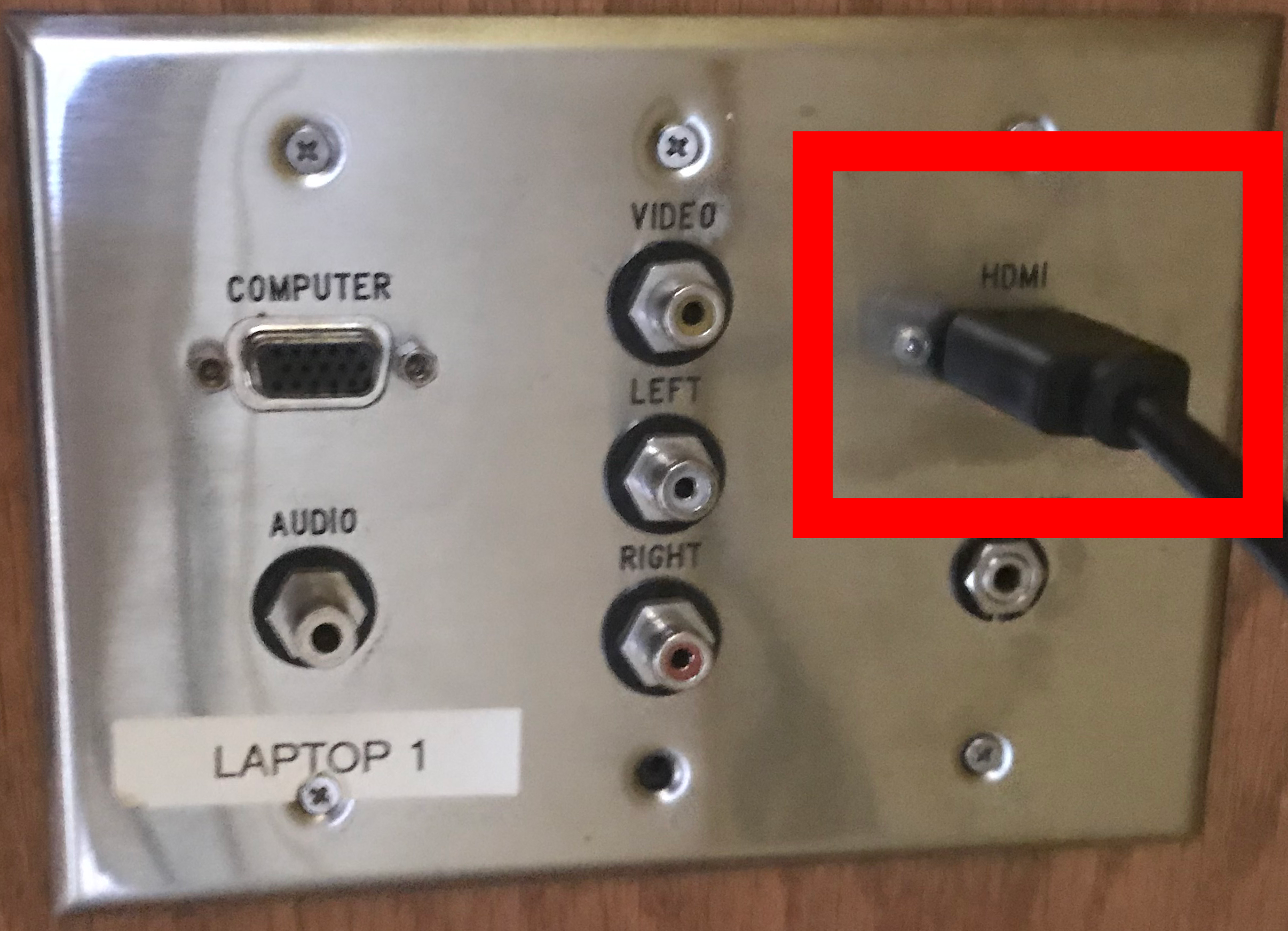

Church PC HDMI Input

Church PC HDMI Input

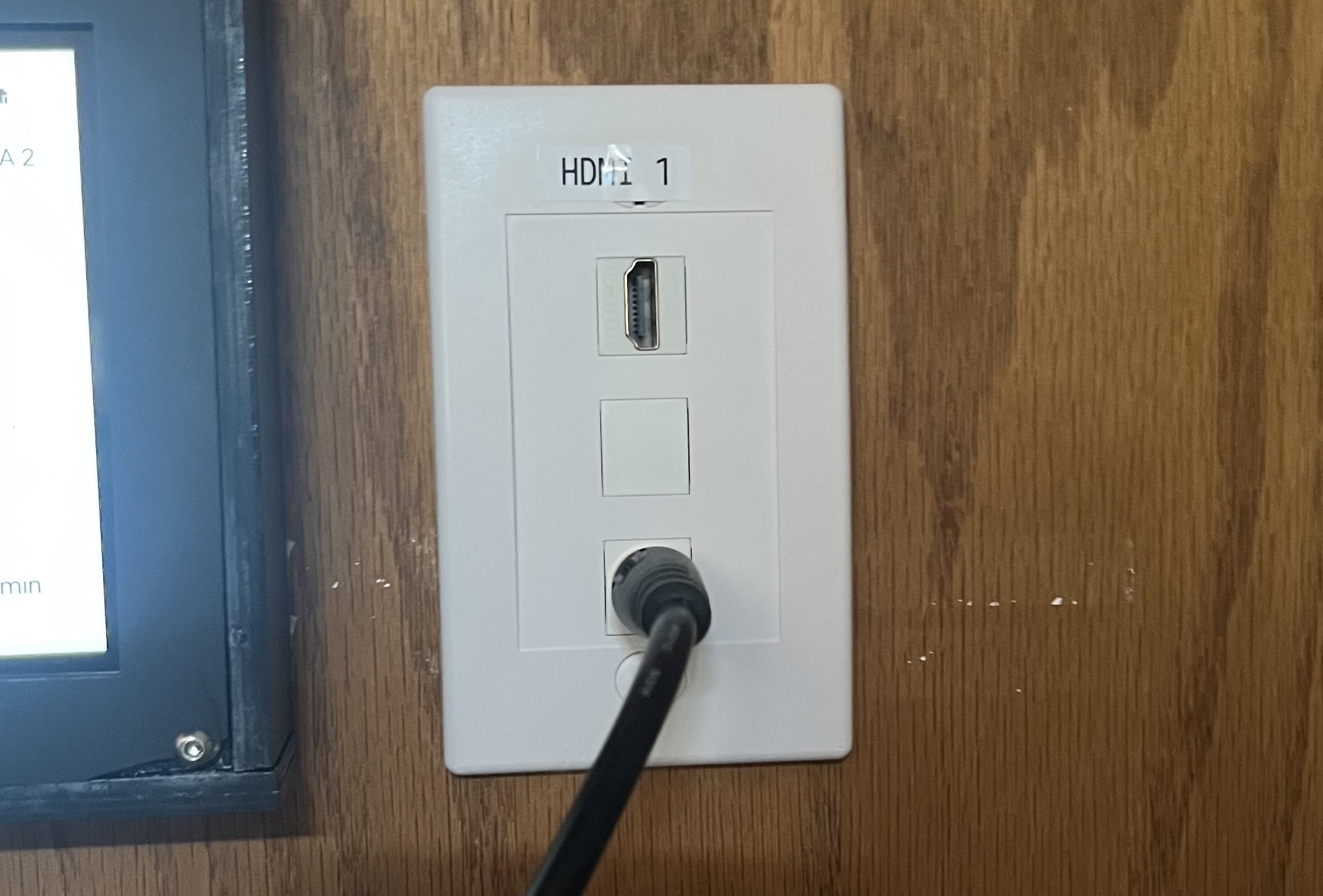

HDMI 1 Input

HDMI 1 Input

HDMI 2 Input

HDMI 2 Input

VGA Inputs

There are two VGA input locations in Mackey Hall: 1. Laptop 1 (VGA): Under the input selector panel with its matching 3.5mm audio port. 2. Laptop 2 (VGA): On the wall outside the Scout Closet, under the projector screen, with its matching 3.5mm audio port.

VGA requires two cables for full A/V: VGA (video) plus 3.5mm (audio).

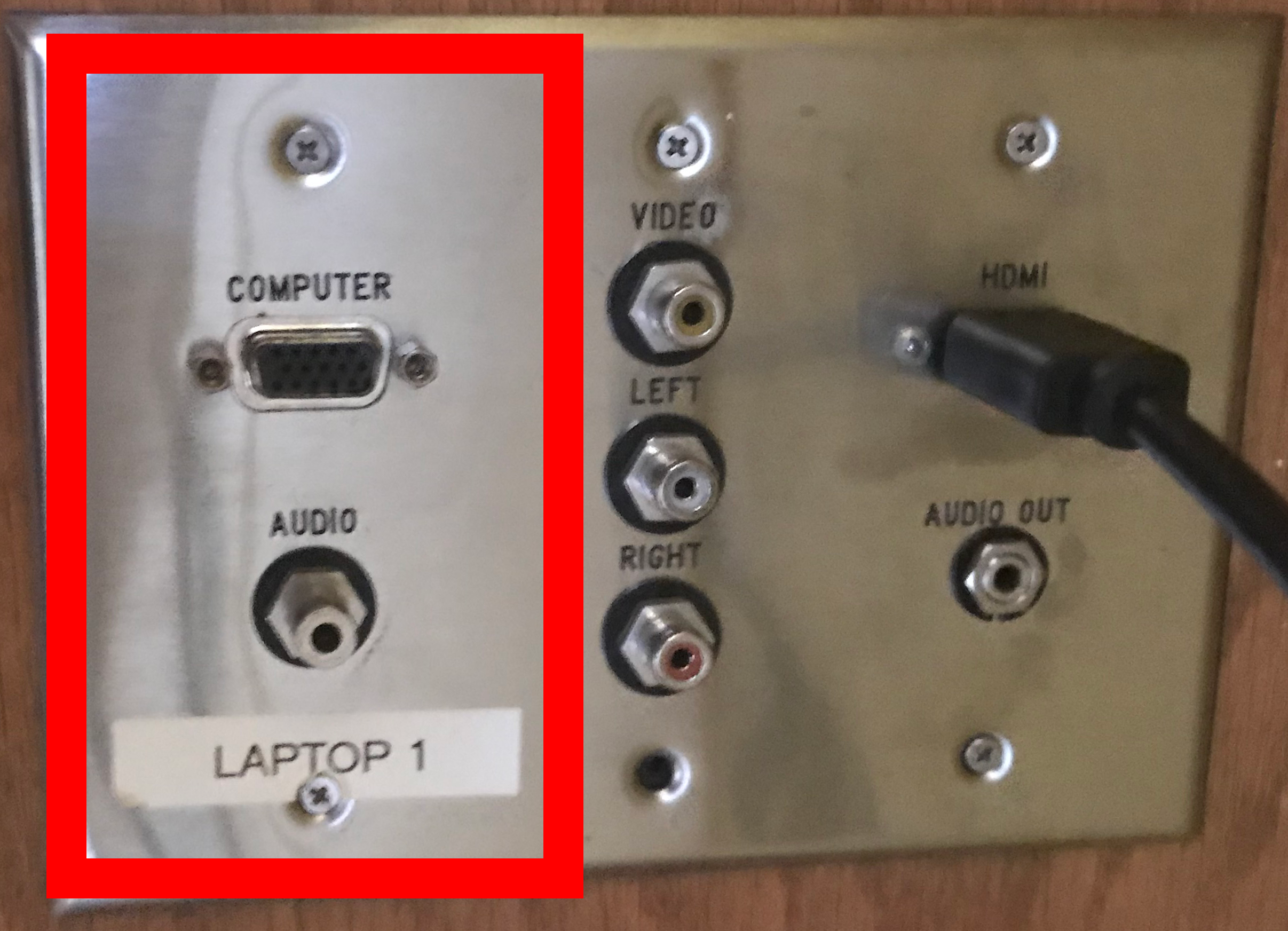

Laptop 1 Input

VGA 1 Input

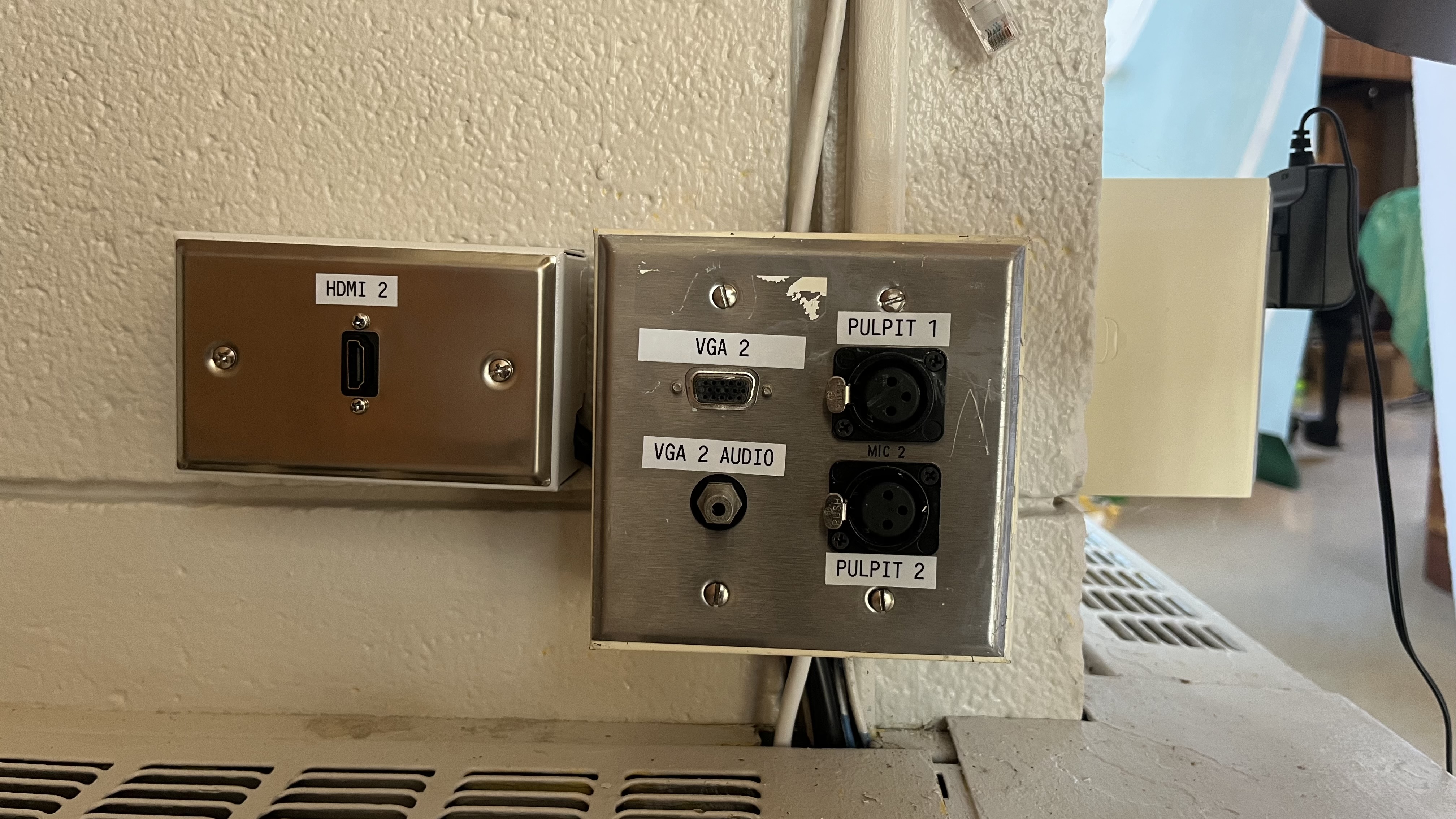

Laptop 2 Input

VGA 2 Input

RCA Input

There is one RCA input under the input selector panel. - Yellow: video - White/Red: left/right audio

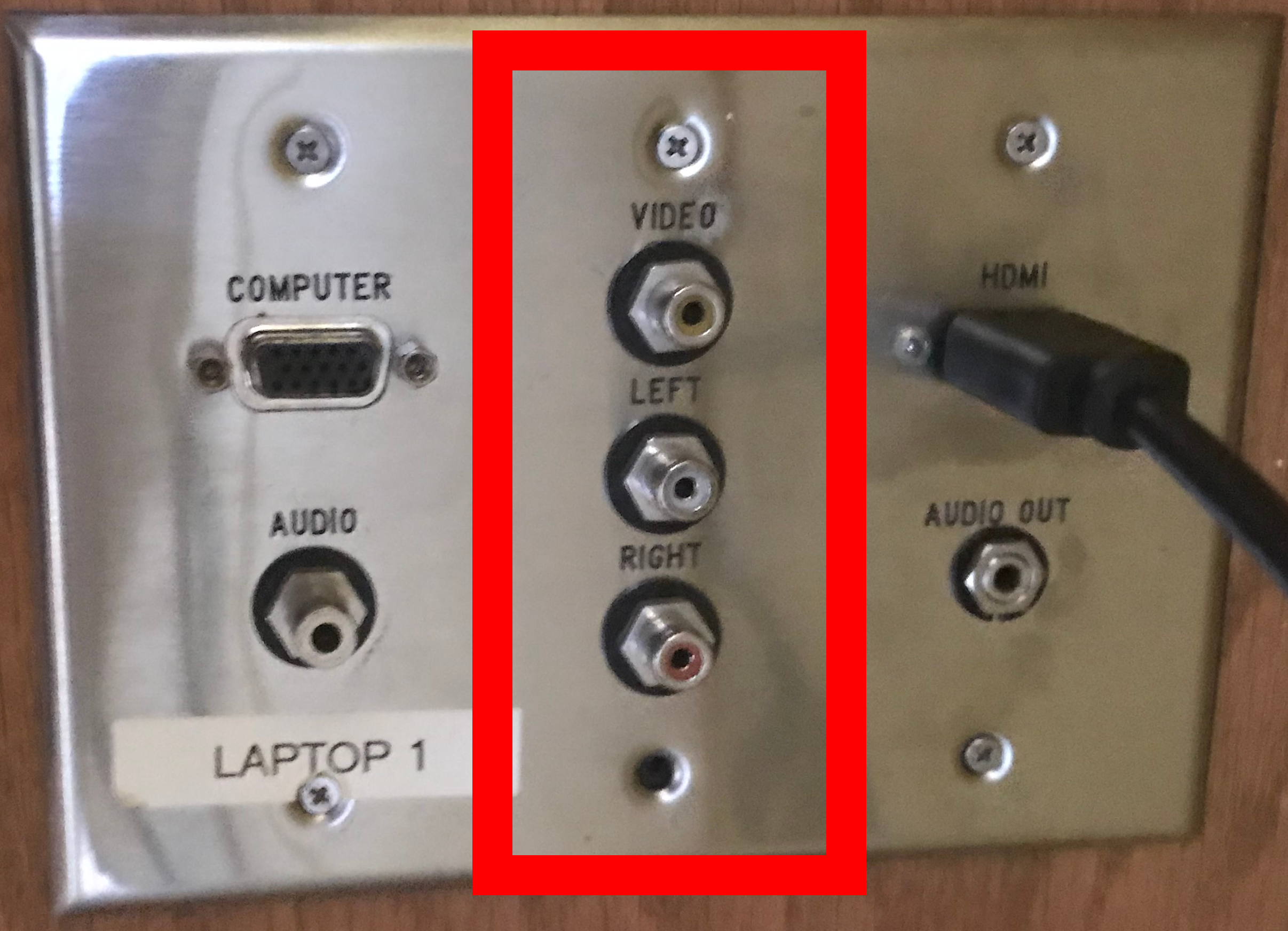

RCA Input
